50-1505a-010

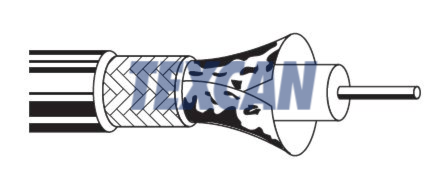

Coaxial Cable Precision Video RG59, Solid 20 AWG Black
Description
Coax, RG59, 20 AWG, 300V, 1 Conductor, Solid bare copper, Gas-injected foam high density Polyethylene (FHDPE), Combination, 1st shield-100% Foil Tape, 2nd shield 95% Tinned Copper braid, PVC, CSA, FT4, Black
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 20 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.145 | Color | Black |
| Conductor Material | Solid bare copper | CSA | Yes |
| Insulation Material | Gas-injected Foam High Density Polyethylene (FHDPE) | Name | Belden Coax Cable RG59 300V 1 Conductor 20 AWG Black |
| Net Weight KG/ KM | 46 | Net Weight LB/MFT | 31 |
| # of Shields | 2 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield 2 Coverage | 95% | Shield 2 Material | Tinned Copper Braid |
| Shield Material | 1st shield-100% Foil Tape, 2nd shield 95% Tinned Copper braid | Voltage | 300V |
