50-1523r

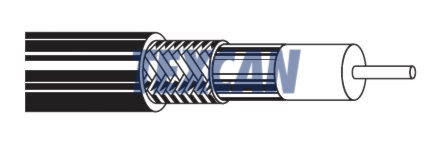

BELDEN CANADA INC - CND$ 1523R DuoBond™ Coaxial Cable RG11/U 14 AWG 75 O
Description
Coax, RG11/U, 14 AWG, 300V, 1 Conductor,Solid BCCS - Bare Copper Covered Steel, Gas-injected FPE - Foam Polyethylene, Combination, Tape Bonded Aluminum Foil/PolYester Tape-Aluminum 100%/ Braid AL - Aluminum 60%, PVC, CSA, FT4, Black
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 14 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.4 | Color | Black |
| Conductor Material | Solid BCCS - Bare Copper Covered Steel | CSA | Yes |
| Name | Belden Coax Cable RG11/U 300V 1 Conductor 14 AWG Black | Net Weight KG/ KM | 80 |
| Net Weight LB/MFT | 54 | # of Shields | 2 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield 2 Coverage | 60% |
| Shield 2 Material | Aluminum Braid | Shield Material | Tape Bonded Aluminum Foil/PolYester Tape-Aluminum 100%/ Braid AL - Aluminum 60% |
| Voltage | 300V |
