50-3079e-100aia
BELDEN CANADA INC - CND$ 123079E B02 TWINAX 150OHM PROFIBUS AIAPURP
Description

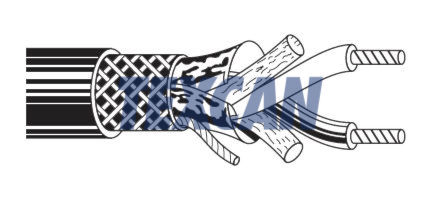

Coax, Twinaxial, 22 AWG, 300V, 1 Pair, Stranded (7x30 ) TC - Tinned Copper, BC - Bare Copper, FRP-Flame Retardant Polyethylene , Combination, Tape Aluminum Foil-PolYester100% / 2 Braid TC - Tinned Copper 65%, PVC, AIA, Purple
Specifications
| Armoured | Yes | Shield | Combination |
| AWG Size | 22 | # of Pairs | 1 |
| Flame Test Rating | No | Cable Type | Coax |
| Approximate Diameter (in.) | 0.608 | Color | Purple |
| Conductor Material | Stranded (7x30 ) TC - Tinned Copper | CSA | No |
| Name | Belden Coax Cable Twinaxial 300V 1 Pair 22 AWG Purple | Net Weight KG/ KM | 67 |
| Net Weight LB/MFT | 45 | # of Shields | 2 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield 2 Coverage | 65% |
| Shield 2 Material | Tinned Copper Braid | Shield Material | Tape Aluminum Foil-PolYester100% / 2 Braid TC - Tinned Copper 65% |
| Voltage | 300V |
