50-5302fe
BELDEN CANADA INC - CND$ 5302FE Multi-Conductor Cable Security and Sound, Shielded 4 Conductors PVC Jacket Gray
50-5302fe
BELDEN CANADA INC - CND$ 5302FE Multi-Conductor Cable Security and Sound, Shielded 4 Conductors PVC Jacket Gray
Description

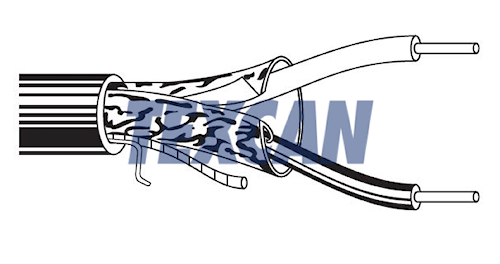

Multi-Conductor, 18 AWG, 300V, 4 Conductors, Stranded (7 x 26) BC - Bare Copper, PVC - Polyvinyl Chloride, Overall Shield, Aluminum Foil-PolYester Tape w/Shorting Fold 100%, PVC, CSA, FT4, Grey
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 18 | No of Conductors | 4 |
| Flame Test Rating | Yes | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.192 | Color | Grey |
| Conductor Material | Stranded (7 x 26) BC - Bare Copper | CSA | Yes |
| Name | Belden Multi-Conductor Cable 300V 4 Conductors 18 AWG Grey | Net Weight KG/ KM | 51 |
| Net Weight LB/MFT | 34 | # of Shields | 1 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield Material | Aluminum Foil-PolYester Tape w/Shorting Fold 100% |
| Voltage | 300V |
