50-558gms
BELDEN CANADA INC - CND$ 558GMS 0001000 Composite Cable Access Control 4, 6 Conductors 1000 ft L
50-558gms
BELDEN CANADA INC - CND$ 558GMS 0001000 Composite Cable Access Control 4, 6 Conductors 1000 ft L
Description

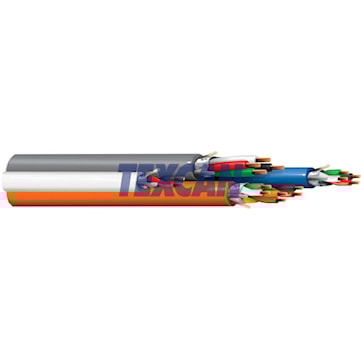

Multi-Conductor, 22/18 AWG, 300V, 18 Conductors, 4c- 22 (7x30) BC - Bare Copper, 4c- 22 (7x30_ BC - Bare Copper, 6c-22 (7x30 _BC - Bare Copper,4c- 18( 7x26 _BC - Bare Copper, F-R PVC - Flame Retardant Polyvinyl Chloride, Overall Shield, 22 awg has Tape Aluminum Foil-PolYester100%, Individual Shield, Tape Aluminum Foil-PolYester100%, AIA, CSA, FT4
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 22/18 | No of Conductors | 18 |
| Flame Test Rating | Yes | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.425 | Conductor Material | 4c- 22 (7x30) BC - Bare Copper, 4c- 22 (7x30_ BC - Bare Copper, 6c-22 (7x30 _BC - Bare Copper,4c- 18( 7x26 _BC - Bare Copper |
| CSA | Yes | Name | Belden Multi-Conductor Cable 300V 18 Conductors 22/18 AWG |
| Net Weight KG/ KM | 140 | Net Weight LB/MFT | 94 |
| # of Shields | 1 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield Material | 22 awg has Tape Aluminum Foil-PolYester100% | Voltage | 300V |
