50-6541ue

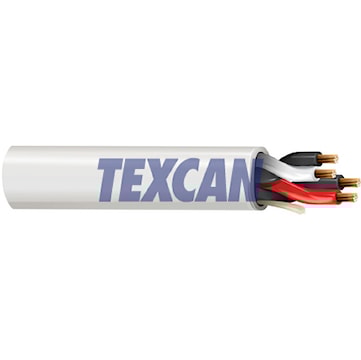

BELDEN CANADA INC - CND$ 6541UE Multi-Conductor Cable Shielded, Sound 4 Conductors Flamarrest PVC Jacket

Length
Documents Documents

Description

Multi-Pair, 22 AWG, 300V, 2 Pairs, Stranded (7 x 30) BC - Bare Copper, LS PVC - Low Smoke Polyvinyl Chloride, Unshielded, LS PVC, CSA, FT4, Natural

Specifications

Armoured No Shield Unshielded
AWG Size 22 # of Pairs 2
Flame Test Rating Yes Cable Type Multi-Pair
Approximate Diameter (in.) 0.199 Color Natural
Conductor Material Stranded (7X30) BC - Bare Copper CSA Yes
Name Belden Multi-Pair Cable 300V 2 Pairs 22 AWG Natural Net Weight KG/ KM 27
Net Weight LB/MFT 18 Options Multiple construction and colors available upon request
Voltage 300V
