50-735a1

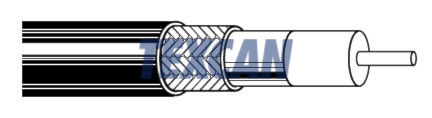

BELDEN CANADA INC - CND$ 735A1 Coaxial Cable Solid 26 AWG 75 O Yellow
Description
Single Conductor, 26 AWG, 300V, 1 Conductor, Solid-SPC - Silver Plated Copper, FHDPE - Foam High Density Polyethylene, Combination, Tape-Aluminum Foil 100 % / 93% Tinned Copper Braid, PVC, CSA, FT4, Grey
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 26 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.129 | Color | Grey |
| Conductor Material | Solid-SPC - Silver Plated Copper | CSA | Yes |
| Jacket Material | Polyvinyl Chloride (PVC) | Name | Belden Single Conductor Cable 300V 1 Conductor 26 AWG Grey |
| Net Weight KG/ KM | 16 | Net Weight LB/MFT | 11 |
| # of Shields | 2 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield 2 Coverage | 93% | Shield 2 Material | Tinned Copper Braid |
| Shield Material | Tape-Aluminum Foil 100 % / 93% Tinned Copper Braid | Voltage | 300V |
