50-7731a-010

BELDEN CANADA INC - CND$ 7731A Coaxial Cable Digital Video, RG11/U, Solid 14 AWG 75 O

Length
Documents Documents

Description

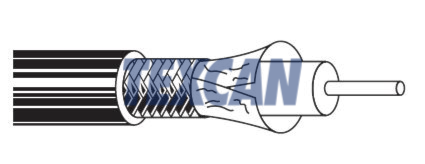

Coax, RG11, 14 AWG, 300V, 1 Conductor, Solid bare copper, Gas-injected foam high density Polyethylene (FHDPE), Combination, 1st shield-100% Foil Tape, 2nd shield 95% Tinned Copper braid, PVC, CSA, FT4, Black

Specifications

Armoured No Shield Combination
AWG Size 14 No of Conductors 1
Flame Test Rating Yes Cable Type Coax
Approximate Diameter (in.) 0.28 Color Black
Conductor Material Solid bare copper CSA Yes
Insulation Material Gas-injected Foam High Density Polyethylene (FHDPE) Name Belden Coax Cable RG6 300V 1 Conductor 14 AWG Black
Net Weight KG/ KM 149 Net Weight LB/MFT 100
# of Shields 2 Options Multiple construction and colors available upon request
Shield 1 Coverage 100% Shield 1 Material Aluminum Foil Shield
Shield 2 Coverage 95% Shield 2 Material Tinned Copper Braid
Shield Material 1st shield-100% Foil Tape, 2nd shield 95% Tinned Copper braid Voltage 300V
