50-7895a

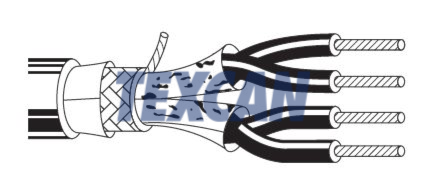

BELDEN CANADA INC - CND$ 7895A DeviceBus® Data Bus Cable 18, 22 AWG 1 Conductors Tinned Copper Gray
50-7895a
BELDEN CANADA INC - CND$ 7895A DeviceBus® Data Bus Cable 18, 22 AWG 1 Conductors Tinned Copper Gray
Description
Multi-Conductor, 18/20 AWG, 600V, 4 Conductors, 1pr 18 19x30 TC - Tinned Copper, 1pr 20 19x32 TC - Tinned Copper,PVC - Polyvinyl Chloride 18, FPE - Foam Polyethylene 20, Combination, Tape Aluminum Foil-PolYester100%, Braid Shield TC-Tinned Copper -65%, PVC, AIA, CSA, FT4, Grey
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 18/20 | No of Conductors | 4 |
| Flame Test Rating | Yes | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.378 | Color | Grey |
| Conductor Material | 1pr 18 19x30 TC - Tinned Copper, 1pr 20 19x32 TC - Tinned Copper | CSA | Yes |
| Insulation Material | Polyvinyl Chloride (PVC) 18 AWG, Foam Polyethylene (FPE) 20 AWG | Name | Belden Multi-Conductor Cable 600V 4 Conductors 18/20 AWG |
| Net Weight KG/ KM | 101 | Net Weight LB/MFT | 68 |
| # of Shields | 2 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield 2 Coverage | 65% | Shield 2 Material | Tinned Copper Braid |
| Shield Material | Tape Aluminum Foil-PolYester100%, Braid Shield TC-Tinned Copper -65% | Voltage | 600V |
