50-8241-010aia_1
Texcan Generic 128241 Belden Coax Cable RG59 300V 1 Conductor 23 AWG Black
50-8241-010aia_1
Texcan Generic 128241 Belden Coax Cable RG59 300V 1 Conductor 23 AWG Black
Description

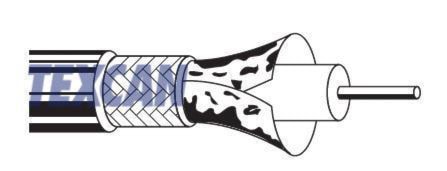

Coax, RG59, 23 AWG, 300V, 1 Conductor, Bare copper covered steel, Polyethylene insulation, Overall Shielded, 95% Bare Copper Braid , PVC, AIA, FT4, CSA, Black
Specifications
| Armoured | Yes | Shield | Overall Shielded |
| AWG Size | 23 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.242 | Color | Black |
| Conductor Material | Bare Copper Covered Steel | CSA | Yes |
| Jacket Material | Polyvinyl Chloride (PVC) | Name | Belden Coax Cable RG59 300V 1 Conductor 23 AWG Black |
| Net Weight KG/ KM | 202 | Net Weight LB/MFT | 136 |
| # of Shields | 1 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 95% | Shield 1 Material | Bare Copper Braid |
| Shield Material | 95% Bare copper braid | Voltage | 300V |
