50-8241f-070
BELDEN CANADA INC - CND$ 8241F COAXIAL RG59/U FPE/PVC 95% YEL
Description

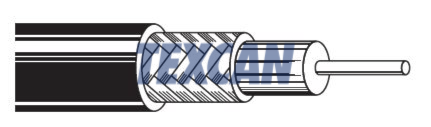

Coax, RG59, 22 AWG, 300V, 1 Conductor,Bare stranded (7x30) copper conductor, Foam polyethylene (FPE), Overall Shielded, 95% Bare copper braid, PVC, FT4, CSA, Yellow
Specifications
| Armoured | No | Shield | Overall Shielded |
| AWG Size | 22 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.242 | Color | Yellow |
| Conductor Material | Bare stranded (7x30) copper conductor | CSA | Yes |
| Insulation Material | Foam Polyethylene (FPE) | Jacket Material | Polyvinyl Chloride (PVC) |
| Name | Belden Coax Cable RG59 300V 1 Conductor 22 AWG Yellow | Net Weight KG/ KM | 49 |
| Net Weight LB/MFT | 33 | # of Shields | 1 |
| Options | Armored construction and multiple colors available upon request | Shield 1 Coverage | 95% |
| Shield 1 Material | Bare Copper Braid | Shield Material | 95% Bare copper braid |
| Voltage | 300V |
