50-8443

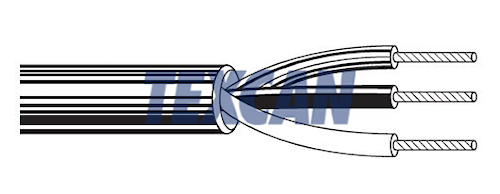

BELDEN CANADA INC - CND$ 8443 Multi-Conductor Cable Electronic, Shielded 3 Conductors PVC Jacket Chrome
50-8443
BELDEN CANADA INC - CND$ 8443 Multi-Conductor Cable Electronic, Shielded 3 Conductors PVC Jacket Chrome
Description
Multi-Conductor, 22 AWG, 150V, 3 Conductors, Stranded (7x30 ) TC - Tinned Copper, PVC - Polyvinyl Chloride, Unshielded, PVC, CSA, FT4, Grey
Specifications
| Armoured | No | Shield | Unshielded |
| AWG Size | 22 | No of Conductors | 3 |
| Flame Test Rating | Yes | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.172 | Color | Grey |
| Conductor Material | Stranded (7x30 ) TC - Tinned Copper | CSA | Yes |
| Name | Belden Multi-Conductor Cable 300V 3 Conductors 22 AWG Grey | Net Weight KG/ KM | 24 |
| Net Weight LB/MFT | 16 | Options | Multiple construction and colors available upon request |
| Voltage | 150V | UPC | 809763084438 |
