BELDEN CANADA INC - CND$ 8424 Overall Beldfoil® Microphone Cable 20 AWG 4 Conductors Tinned Copper Black
50-8424
BELDEN CANADA INC - CND$ 8424 Overall Beldfoil® Microphone Cable 20 AWG 4 Conductors Tinned Copper Black
Description

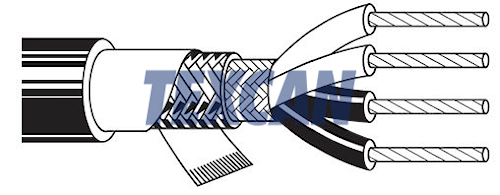

Multi-Conductor, 20 AWG, 600V, 4 Conductors, Stranded (26x34)High Conductivity TC - Tinned Copper, EPDM - Ethylene Propylene Diene MoNomer Rubber, Overall Shield, TC - Tinned Copper 85%, EPDM, Black
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 20 | No of Conductors | 4 |
| Flame Test Rating | No | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.294 | Color | Black |
| Conductor Material | Stranded (26x34)High Conductivity TC - Tinned Copper | CSA | No |
| Jacket Material | Ethylene Propylene Diene MoNomer Rubber (EPDM) | Name | Belden Multi-Conductor Cable 600V 4 Conductors 20 AWG Black |
| Net Weight KG/ KM | 83 | Net Weight LB/MFT | 56 |
| # of Shields | 1 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 85% | Shield 1 Material | Tinned Copper Braid |
| Shield Material | TC - Tinned Copper 85% | Voltage | 600V |
