50-8762
BELDEN CANADA INC - CND$ 8762 Overall Beldfoil® Multi-Conductor Cable Electronic 20 AWG 1 Pair Conductors Tinned Copper Chrome
50-8762
BELDEN CANADA INC - CND$ 8762 Overall Beldfoil® Multi-Conductor Cable Electronic 20 AWG 1 Pair Conductors Tinned Copper Chrome
Description

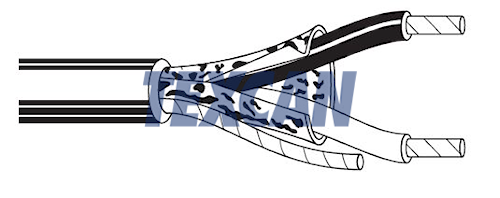

Pair, 20 AWG, 300V, 1 Pair, Stranded (7x28 ) TC - Tinned Copper, Polyethylene (PE), Overall Shield, Tape Aluminum Foil-PolYester100%, PVC, CSA, Grey
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 20 | # of Pairs | 1 |
| Flame Test Rating | No | Cable Type | Pair |
| Approximate Diameter (in.) | 0.204 | Color | Grey |
| Conductor Material | Stranded (7x28 ) TC - Tinned Copper | CSA | Yes |
| Insulation Material | Polyethylene (PE) | Name | Belden Multi-Pair Cable 300V 1 Pair 20 AWG Grey |
| Net Weight KG/ KM | 31 | Net Weight LB/MFT | 21 |
| # of Shields | 1 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield Material | Tape Aluminum Foil-PolYester100% | Voltage | 300V |
