50-8770

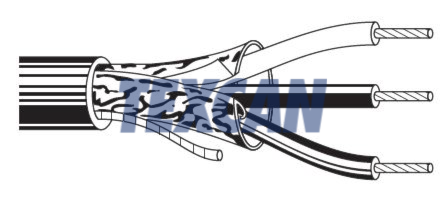

BELDEN CANADA INC - CND$ 8770 Overall Beldfoil® Multi-Conductor Cable Electronic 18 AWG 3 Conductors Tinned Copper Chrome
50-8770
BELDEN CANADA INC - CND$ 8770 Overall Beldfoil® Multi-Conductor Cable Electronic 18 AWG 3 Conductors Tinned Copper Chrome
Description
Multi-Conductor, 18 AWG, 300V, 3 Conductors, Stranded (16X30) TC - Tinned Copper, Polyethylene (PE), Overall Shield, Tape Aluminum Foil-PolYester100%, PVC, CSA, Grey
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 18 | No of Conductors | 3 |
| Flame Test Rating | No | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.246 | Color | Grey |
| Conductor Material | Stranded (16X30) TC - Tinned Copper | CSA | Yes |
| Insulation Material | Polyethylene (PE) | Name | Belden Multi-Conductor Cable 300V 3 Conductors 18 AWG Grey |
| Net Weight KG/ KM | 54 | Net Weight LB/MFT | 36 |
| # of Shields | 1 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield Material | Tape Aluminum Foil-PolYester100% | Voltage | 300V |
| UPC | 981001038006 |
