50-8790
BELDEN CANADA INC - CND$ 8790 S/SHLD 1PR-18 STC PVC/PVC 85%
Description

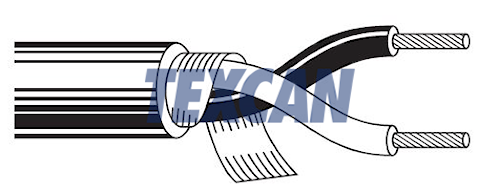

Pair, 18 AWG, 300V, 1 Pair, Stranded (7x26) TC - Tinned Copper, PVC - Polyvinyl Chloride, Overall Shield, Tape Aluminum Foil-PolYester100%-Spiral, PVC, CSA, FT4, Grey
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 18 | # of Pairs | 1 |
| Flame Test Rating | Yes | Cable Type | Pair |
| Approximate Diameter (in.) | 0.241 | Color | Grey |
| Conductor Material | Stranded (7x26 ) TC - Tinned Copper | CSA | Yes |
| Name | Belden Multi-Pair Cable 300V 1 Pair 18 AWG Grey | Net Weight KG/ KM | 49 |
| Net Weight LB/MFT | 33 | # of Shields | 1 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield Material | Tape Aluminum Foil-PolYester100%-Spiral |
| Voltage | 300V |
