50-9116r
Coaxial Cable RG6/U, Solid 18 AWG 75 O 300V
Description

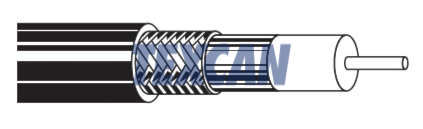

Coax, RG6, 18 AWG, 300V, 1 Conductor, Bare copper covered steel, Gas-injected foam polyethylene, Combination, 1st shield-100% Tape, 2nd shield 60% Aluminum braid, PVC, FT4, CSA, Black
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 18 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.27 | Color | Black |
| Conductor Material | Bare Copper Covered Steel | CSA | Yes |
| Jacket Material | Polyvinyl Chloride (PVC) | Name | Belden Coax Cable RG6 300V 1 Conductor 18 AWG Black |
| Net Weight KG/ KM | 45 | Net Weight LB/MFT | 30 |
| # of Shields | 2 | Options | Armored construction and multiple colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield 2 Coverage | 60% | Shield 2 Material | Aluminum Braid |
| Shield Material | 1st shield-100% Tape, 2nd shield 60% Aluminum braid | Voltage | 300V |
