50-9290-010aia
BELDEN CANADA INC - CND$ 9290 COAXIAL RG 6/U FPE/PVC 98% DBL
Description

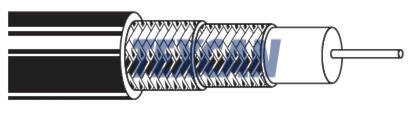

Coax, RG6, 18 AWG, 300V, 1 Conductor, Solid bare copper, Foam polyethylene insulation, Combination, Two 95% Bare Copper Braids, PVC, AIA, FT4, CSA, Black
Specifications
| Armoured | Yes | Shield | Combination |
| AWG Size | 18 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.6 | Color | Black |
| Conductor Material | Solid bare copper | CSA | Yes |
| Jacket Material | Polyvinyl Chloride (PVC) | Name | Belden Coax Cable RG6 300V 1 Conductor 18 AWG Black |
| Net Weight KG/ KM | 231 | Net Weight LB/MFT | 155 |
| # of Shields | 2 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 95% | Shield 1 Material | Bare Copper Braid |
| Shield 2 Coverage | 95% | Shield 2 Material | Bare Copper Braid |
| Shield Material | Two 95% Bare Copper Braids | Voltage | 300V |
