50-9463-040aia

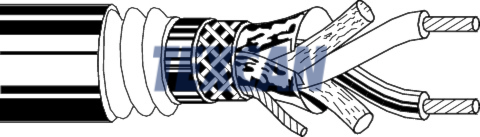

BELDEN CANADA INC - CND$ 129463 Blue Hose® Twin Axial Cable Aluminum Interlock Armor, Foil and Braided Shielding 1 Pair Conductors 65% PVC Jacket
50-9463-040aia
BELDEN CANADA INC - CND$ 129463 Blue Hose® Twin Axial Cable Aluminum Interlock Armor, Foil and Braided Shielding 1 Pair Conductors 65% PVC Jacket
Description
Coax, Twinaxial, 20 AWG, 300V, 1 Conductor, Tinned copper (7 x 28) conductor, Polyethylene insulated, Combination, 1st shield-100% Tape, 2nd shield 55% Tinned Copper braid, PVC, AIA, CSA, FT4, Blue
Specifications
| Armoured | Yes | Shield | Combination |
| AWG Size | 20 | # of Pairs | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.563 | Color | Blue |
| Conductor Material | Tinned copper (7 x 28) conductor | CSA | Yes |
| Name | Belden Coax Cable Twinaxial 300V 1 Conductor 20 AWG Blue | Net Weight KG/ KM | 182 |
| Net Weight LB/MFT | 122 | # of Shields | 2 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield 2 Coverage | 55% |
| Shield 2 Material | Tinned Copper Braid | Shield Material | 1st shield-100% Tape, 2nd shield 55% Tinned Copper braid |
| Voltage | 300V |
