50-9730-090aia

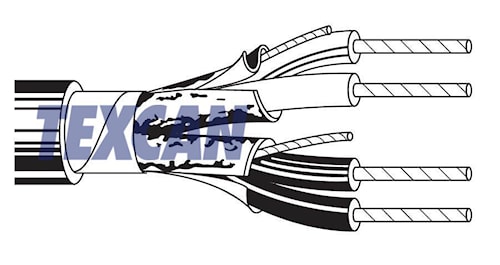

BELDEN CANADA INC - CND$ 9730 F/SHLD 3PR-24 SP STC AIA GREY
Description
Multi-Pair, 24 AWG, 300V, 3 Pairs, Stranded (7x32) TC - Tinned Copper, Datalene, Individually Shield, Individually Shield Pairs-Tape Aluminum Foil-PolYester100%, PVC, AIA, CSA, FT4, Grey
Specifications
| Armoured | Yes | Shield | Individually Shield |
| AWG Size | 24 | # of Pairs | 3 |
| Flame Test Rating | Yes | Cable Type | Multi-Pair |
| Approximate Diameter (in.) | 0.634 | Color | Grey |
| Conductor Material | Stranded (7x32) TC - Tinned Copper | CSA | Yes |
| Insulation Material | Datalene | Name | Belden Multi-Pair Cable 300V 3 Pairs 24 AWG Grey |
| Net Weight KG/ KM | 235 | Net Weight LB/MFT | 158 |
| # of Shields | 2 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield 2 Coverage | 100% | Shield 2 Material | Aluminum Foil Shield |
| Shield Material | Individually Shield Pairs-Tape Aluminum Foil-PolYester100% | Voltage | 300V |
