50-9940

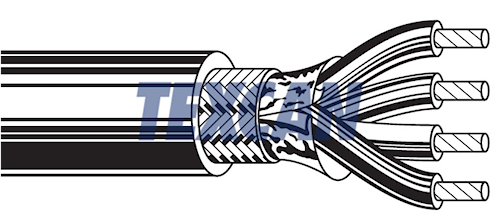

BELDEN CANADA INC - CND$ 9940 Overall Beldfoil® Multi-Conductor Cable 22 AWG 4 Conductors Tinned Copper Chrome
50-9940
BELDEN CANADA INC - CND$ 9940 Overall Beldfoil® Multi-Conductor Cable 22 AWG 4 Conductors Tinned Copper Chrome
Description
Multi-Conductor, 22 AWG, 300V, 4 Conductors, Stranded (7x30) TC - Tinned Copper, S-R PVC - Semi-Rigid Polyvinyl Chloride, Combination, Tape Aluminum Foil-PolYester100% / 2 Braid TC - Tinned Copper 65%, PVC, CSA, FT4, Grey
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 22 | No of Conductors | 4 |
| Flame Test Rating | Yes | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.215 | Color | Grey |
| Conductor Material | Stranded (7x30 ) TC - Tinned Copper | CSA | Yes |
| Name | Belden Multi-Conductor Cable 300V 4 Conductors 22 AWG Grey | Net Weight KG/ KM | 48 |
| Net Weight LB/MFT | 32 | # of Shields | 2 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield 2 Coverage | 65% |
| Shield 2 Material | Tinned Copper Braid | Shield Material | Tape Aluminum Foil-PolYester100% / 2 Braid TC - Tinned Copper 65% |
| Voltage | 300V |
